Description

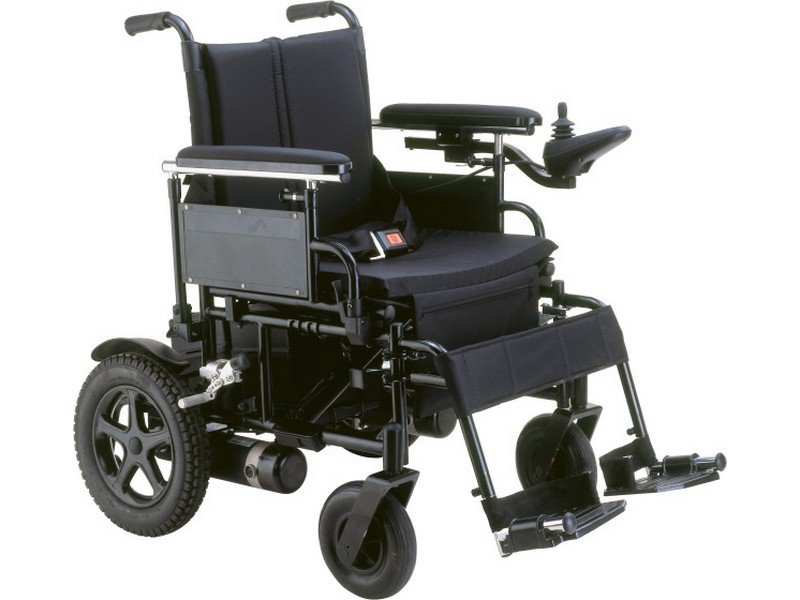

This sturdy and easy-to-use chair is portable and easy to handle around curves and in small spaces, making transportation easy and convenient. The Cirrus Plus EC Chair can travel on outdoor surfaces and has a weight capacity of 300 pounds. This Cirrus Plus EC has a top speed of 5 MPH and has two 12V 35Ah batteries that provide a riding range of 12 miles. Each chair uses a programmable console and comes with a seat belt, seat cushion, storage bag, foldable battery tray, swing-out footrests with calf straps and heel loops, and anti-flips; Other accessories are available. Batteries are included.
FEATURES/BENEFITS

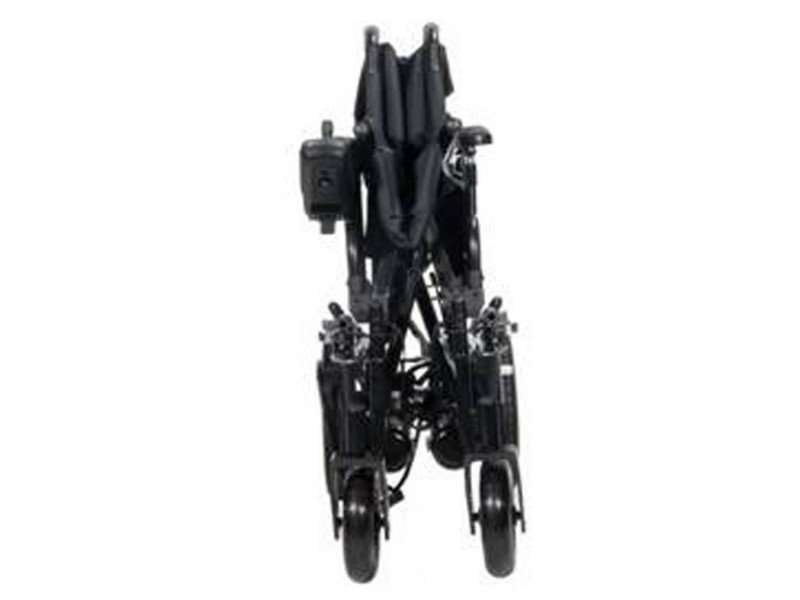

- Foldable, lightweight frame for easy portability (Figure A)
- Attractive steel cross-brace frame
- Armrests are padded, adjustable and removable
- Adjustable-length controller mount
- Adjustable-tension back upholstery
- Swing-away footrests with heel loops
- Optional elevating leg rests (Item #CPELR) sold separately
- Positioning belt included
- Padded back upholstery with storage pouch and cushioned seat
- Programmable controller
- Flat-free, non-marking tires
- Easy free-wheel operation
- Manual wheel locks
- General foam seat cushion included
- Anti-tip wheels
SPECIFICATION
| Alarm mute | Yes |
| Base Weight | 90 lbs. |
| Batteries (pair) | 12V x 36AH (U1) |
| Battery Weight (pair) | 56 lbs. |
| Brakes | Electromagnetic |
| Caster Wheels | 8″ x 2″ Solid |
| Charger | 4A Offboard |
| Climbing Angle | 6° |
| Controller | PG VSi 50A |
| Dimensions | 42.5″ (L) x 24″ (W) | 42.5″ (L) x 26″ (W) | 42.5″ (L) x 28″ (W) |
| Drive Wheels | 12.5″ x 2.25″ Flat-free |
| Floor to Seat Height | 18.5″ |
| Ground Clearance | 4″ |
| HCPCS | K0822 |
| Maximum Range | 15 miles |
| Memory function | Yes |
| Motors (2) | 24V x 320W x 4600 rpm |
| Power failure alarm | Yes |
| Seat Dimensions | 16″ (W) x 16″ (D) | 18″ (W) x 16″ (D) | 20″ (W) x 16″ (D) |
| Static selectable with auto-return to alternating mode | Yes |
| Top Speed | 5 mph |
| Total Weight (excl. hand control) | 146 lbs. |
| Turning Radius | 30″ | 32″ | 33″ |
| Warranty on Batteries | 12 Months |
| Warranty on Drive Train Components | 24 Months |
| Warranty on Electronic Controller | 24 Months |
| Warranty on Frame | Lifetime |
| Weight Capacity | 300 lbs |
